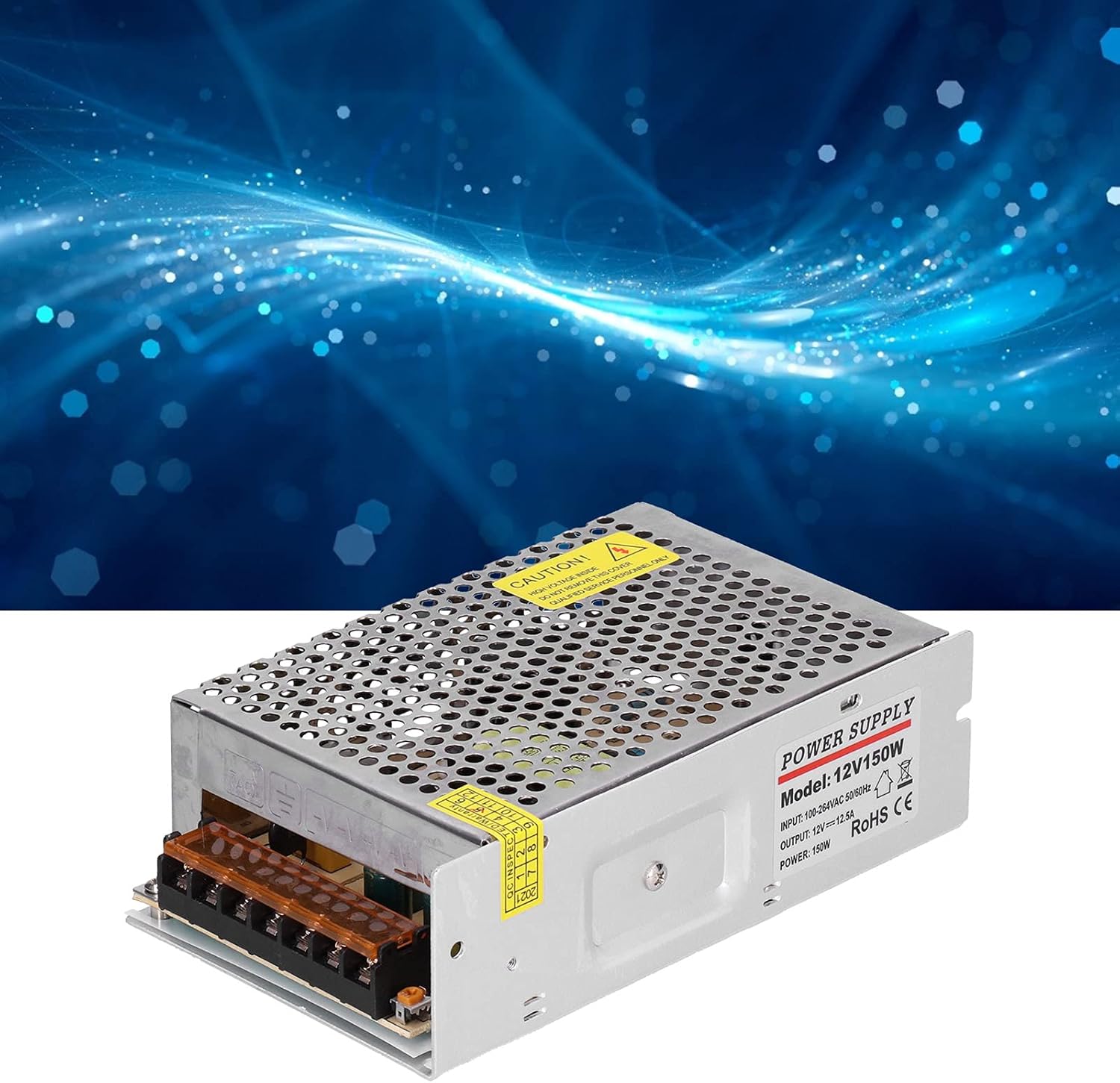

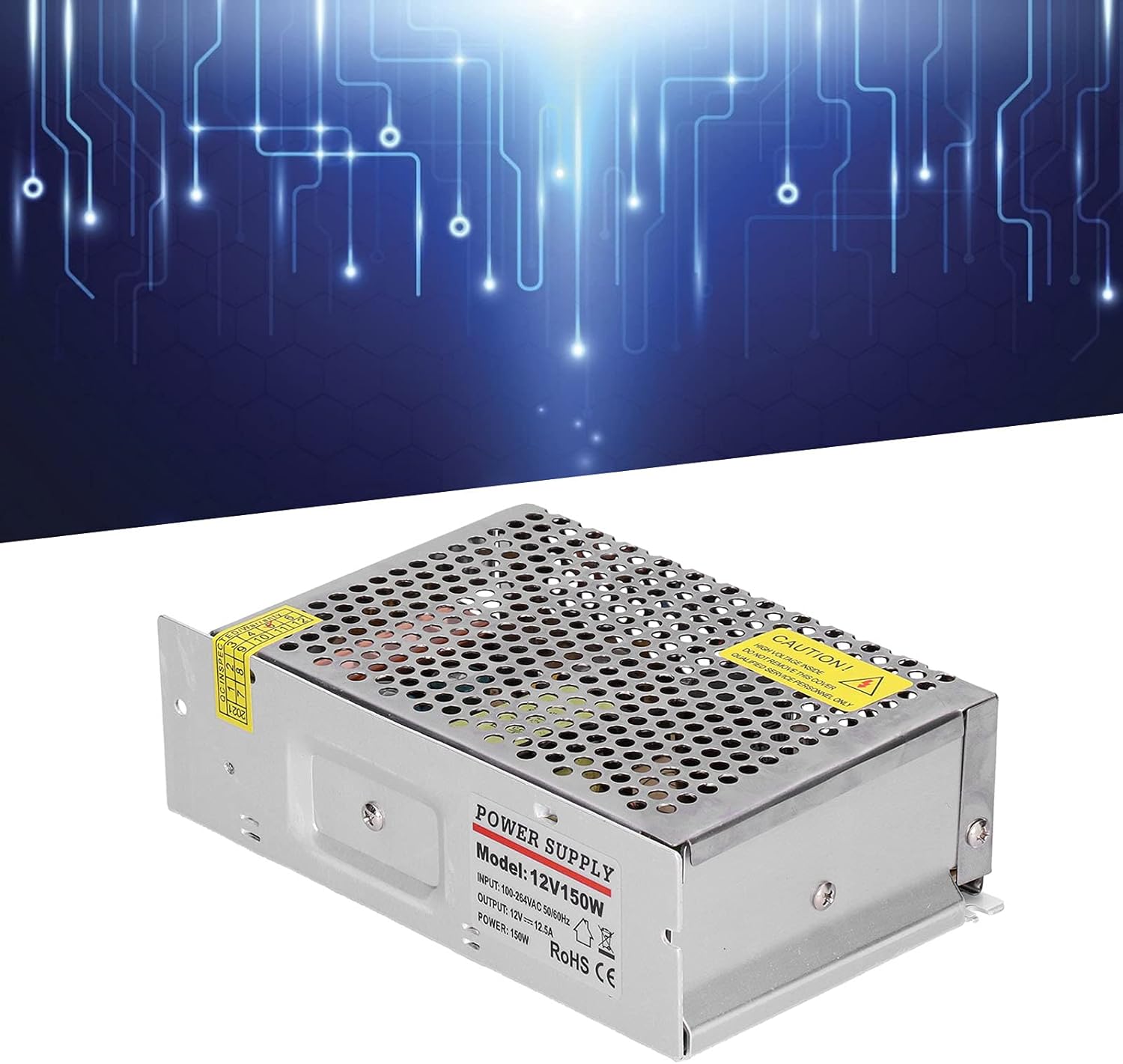

DC Regulated Switching Power Supply for Electrical Equipment and Security Monitoring - 12V DC 150W 12.5A Output - Aluminum Alloy Housing for Industrial Control and LED Applications

Item Type: Regulated Switching Power SupplyMaterial: Aluminum alloyInput Voltage: AC 100 - 264VOutput Voltage: DC 12VOutput Current: 12.5AError Margin: ±1%Adjustable Pressure Range: ±5%Power: 150W Max Rating: IP20Start, Rise and Hold time: 200ms, 50ms, 20msWorking Temperature and Humidity: -10℃ - 60℃, 20% - 90%RHStorageTtemperature and Humidity: -20℃ - 80℃, 10% - 95%RHSize: Approx. 200 x 42mm/7.87 x 1.65inApplication: LED power supply, medical power supply, display power supply, industrial control field, power equipment, instruments and meters, solar photovoltaic power supplyPackage List：1 x Switching Power SupplyNote:Switch power supply products before use, please read the operation manual carefully, check whether the switch power supply current and voltage and load current and voltage meet the requirements of use.1. The switching power supply must pay attention to the internal high‑voltage part of the machine, can not touch the internal parts of the machine, non‑professionals do not open the power supply maintenance, otherwise there is the risk of electric shock. Before use, read the relevant wiring marks clearlyPlease turn off the input power when wiring.3. In order to ensure the safety of operation and reduce interference, please ensure that the grounding terminal FG is reliably grounded. (The grounding wire diameter should be reasonably selected according to the input voltage and output power)4. Check whether the mounting screw is in contact with the power board device, and measure the insulation resistance between the shell and the input/output to avoid electric shock.5. Most of the LED switching power supply housing is the heat dissipation part, increase the contact area between the housing and the case when installation, in order to facilitate heat dissipation and prolong the life of the power supply, if the power supply has

• Technical Specifications: This DC regulated switching power supply provides a 12V output with a 150W power rating and 12.5A current for electrical equipment and monitoring systems.

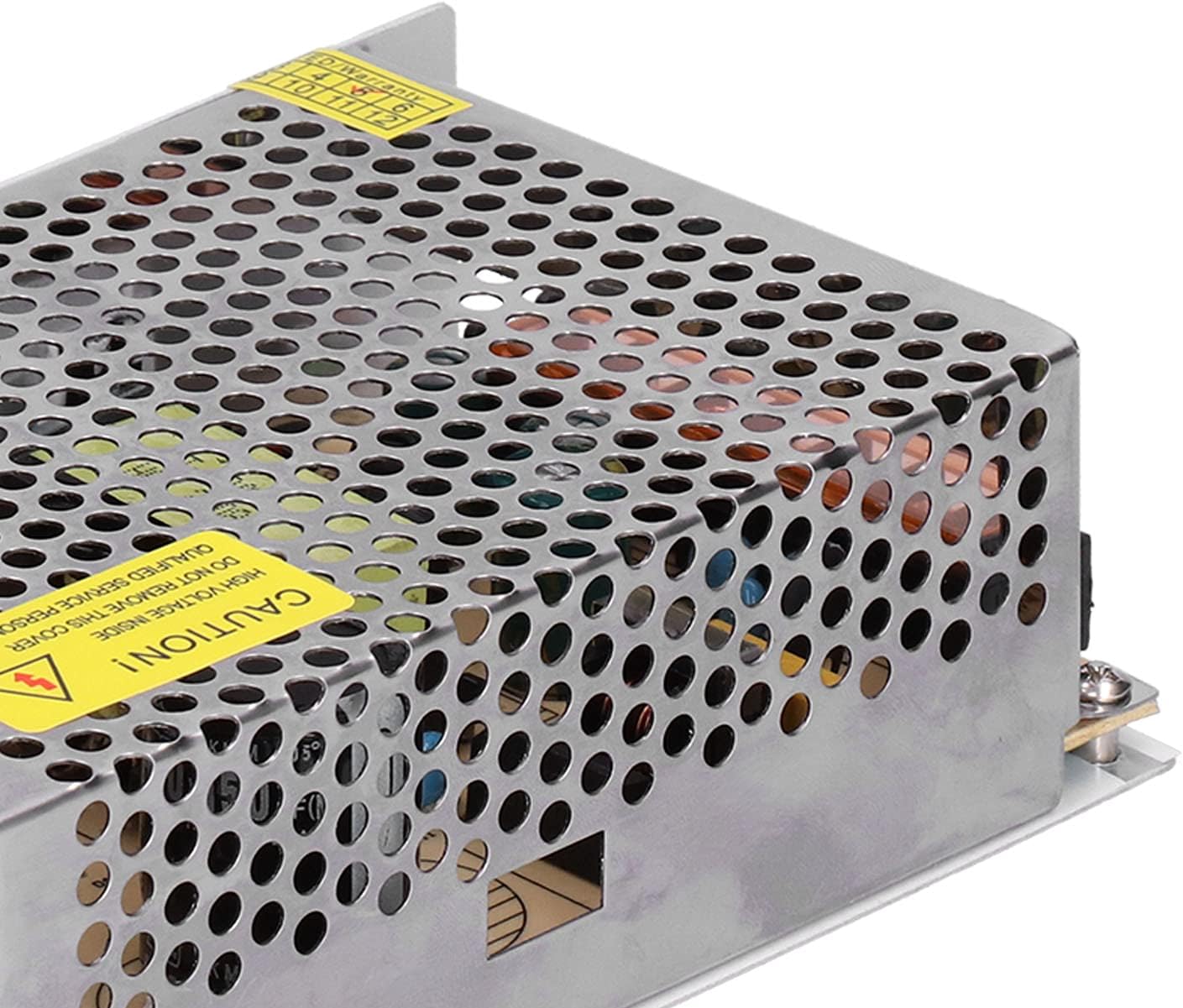

• Aluminum Alloy Construction: The outer shell is made of aluminum alloy to support heat dissipation and protect internal components while maintaining work efficiency during operation.
• Energy Efficient Performance: Integrated transistors utilize a structure designed to consume less energy and provide high efficiency for energy saving operation in industrial environments.
• Compact Design: The lightweight construction reduces external volume and focuses on internal configuration to provide for long service life applications.
• Wide Application Range: This unit is suitable for industrial control fields, LED power supplies, medical systems, display power supplies, instruments, and solar photovoltaic supplies.
